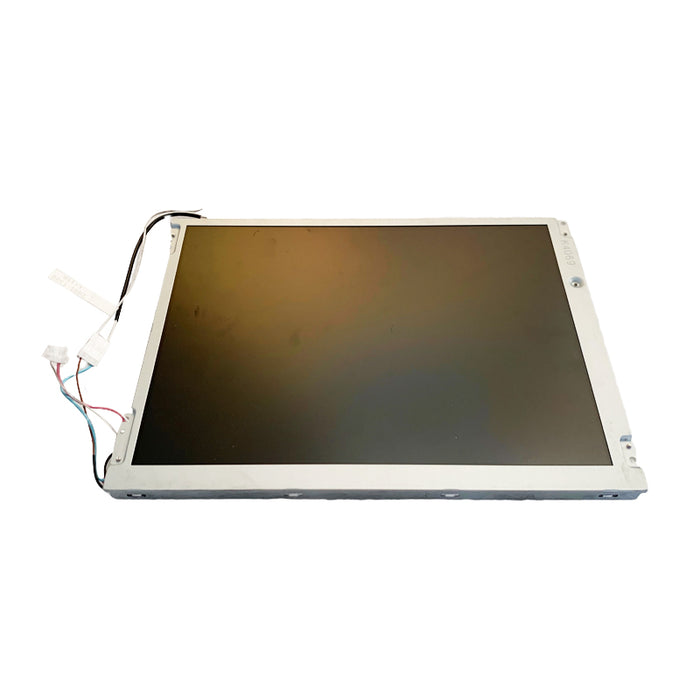

SHARP LQ121S1DG42 12.1-Inch Industrial TFT-LCD Display Panel

The SHARP LQ121S1DG42 is a 12.1-inch TFT-LCD display module designed for industrial display applications. It features an 800 × 600 SVGA resolution, a 41-pin Parallel RGB interface, and a CCFL backlight system.

This LCD panel is suitable for replacing damaged or faulty displays in compatible industrial computers, control terminals, and legacy industrial equipment.

Product Specifications

• Brand: SHARP

• Model: LQ121S1DG42

• Display Type: a-Si TFT-LCD Module

• Screen Size: 12.1 inches

• Resolution: 800 × 600 (SVGA)

• Brightness: 370 cd/m² (typical)

• Contrast Ratio: 450:1 (typical)

• Display Colors: 262K

• Signal Interface: 41-pin Parallel RGB, 1-channel 6-bit

• Backlight: 2 CCFL lamps

• Operating Temperature: -10°C to +65°C

• Touchscreen: Not included

Applications
Suitable for compatible industrial PCs, machine control displays, and legacy equipment requiring a matching LCD panel.

Ordering Information
Contact HK HC Electronic for current stock availability, product condition, pricing, and shipping options.

Please verify the exact model number, connector pinout, electrical requirements, and backlight configuration before ordering.
