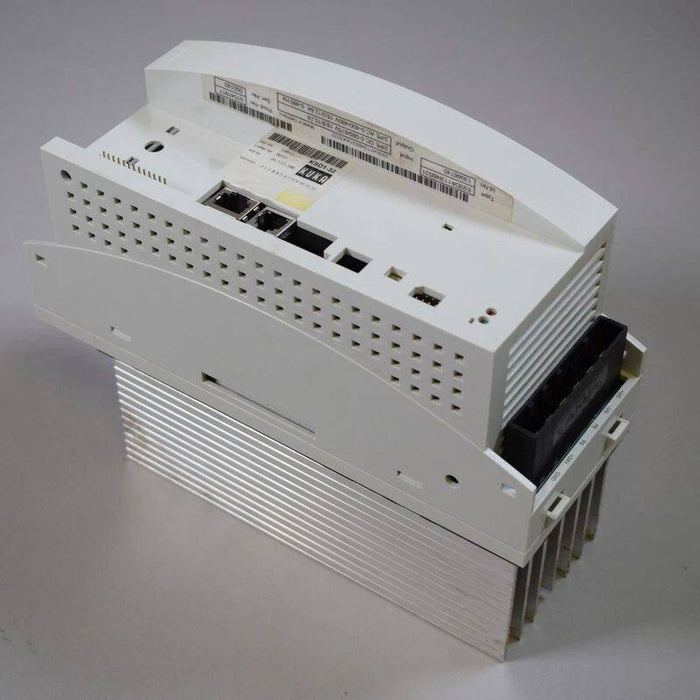

KUKA KSD1-48 Servo Drive Module – 00-117-344

The KUKA KSD1-48 (Part Number: 00-117-344) is an industrial servo drive module designed for compatible KUKA KR C2 robot controller systems. It provides controlled power to robot servo motors, enabling precise movement and motion control of robot axes.

The KSD1-48 incorporates a power output stage, current controller, drive-bus communication interface, and motor monitoring and protection functions. It is suitable for industrial robot maintenance, repair, and replacement applications.

Technical Specifications

• Brand: KUKA

• Model: KSD1-48

• Part Number: 00-117-344

• Product Type: Industrial Servo Drive Module

• Rated Output Current: Approximately 13.6–17 A RMS, depending on voltage configuration

• Maximum Output Current: 48 A

• Input: DC 0–565/675 V

• Output: Three-phase AC, up to 400/480 V

• Output Frequency: 0–480 Hz

• Compatible System: KUKA KR C2 / KR C2 ed05 (verify configuration)

Key Features

• Designed for compatible KUKA robot control systems

• Precise servo motor current control

• Integrated motor current monitoring

• Short-circuit and heatsink temperature monitoring

• Drive-bus communication interface

• Suitable for industrial automation spare parts replacement

Applications

• KUKA industrial robot maintenance

• KR C2 robot controller repair

• Servo drive module replacement

• Industrial automation and robotic motion control
