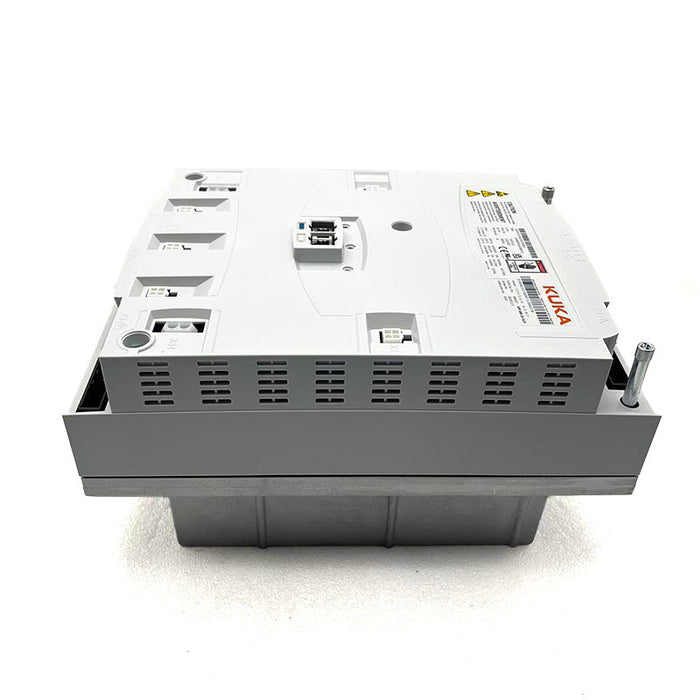

KUKA KSD1-08 Servo Drive Module – 00-122-284

The KUKA KSD1-08 (Part Number: 00-122-284) is an industrial servo drive module designed for compatible KUKA KR C2 robot controller systems. It controls servo motor power and supports precise robot axis movement in industrial automation applications.

The KSD1-08 features a power output stage, current control, an Interbus interface for drive communication, and monitoring functions for motor current, short circuits, and heatsink temperature.

Technical Specifications

• Brand: KUKA

• Model: KSD1-08

• Part Number: 00-122-284

• Product Type: Servo Drive Module

• Input Voltage: 0–565/675 VDC

• Input Current: 4.9/3.9 A

• Output Voltage: 0–400/480 VAC, three-phase

• Output Current: 4.0/3.2 A

• Output Frequency: 0–480 Hz

• Communication Interface: Interbus

• Compatible Controller: KUKA KR C2 (verify exact configuration)

Key Features

• Precise servo motor current control

• Interbus drive communication interface

• Motor current and short-circuit monitoring

• Heatsink temperature monitoring

• Designed for industrial robot motion control

Applications

• KUKA KR C2 robot controller maintenance

• Industrial robot servo drive replacement

• Robot axis motion control

• Industrial automation equipment repair
