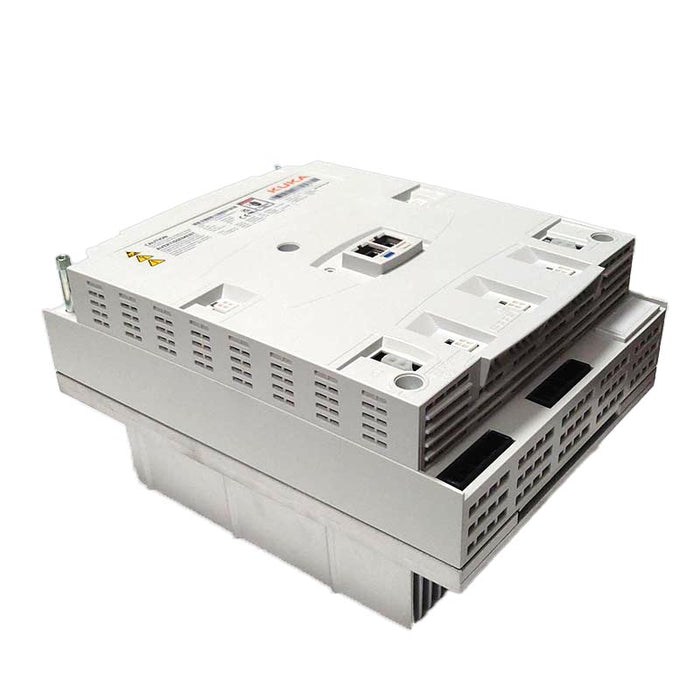

KUKA KPP 600-20-1X40 Power Pack Module 00-198-260

The KUKA KPP 600-20-1X40 is a power supply module designed for compatible KUKA KR C4 industrial robot controller systems. It converts the AC mains supply into a rectified DC intermediate-circuit voltage to supply the robot's drive controllers and associated drive equipment.

This version incorporates a single-axis amplifier with a peak output current of 40 A, making it suitable for compatible external-axis drive applications in industrial robotics and automation.

The KPP Power Pack also supports power supply switching, DC-link power distribution, and braking functions when configured with the appropriate external braking resistor.

Technical Specifications

• Brand: KUKA

• Model: KPP 600-20-1X40

• Product Type: Power Pack Module with Single-Axis Amplifier

• Peak Output Current: 1 × 40 A

• Main Function: AC-to-DC Intermediate-Circuit Power Supply

• Application: Industrial Robot Drive Systems

• Compatible Platform: KUKA KR C4 (verify the exact controller configuration)

Key Features

• Integrated power supply and single-axis amplifier

• Designed for compatible KUKA robot controller systems

• Provides DC-link power for drive equipment

• Supports external-axis motion control

• Integrated braking chopper functionality for use with a suitable external braking resistor

• Status indication through built-in LEDs
