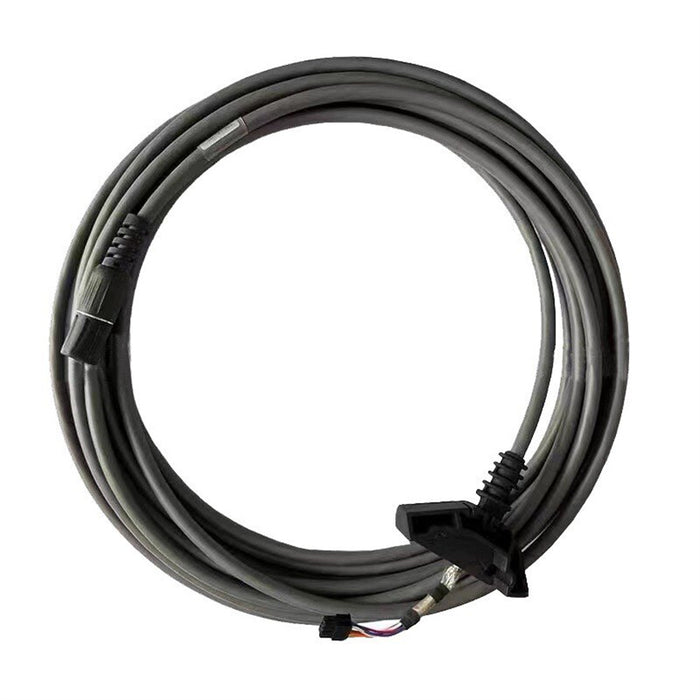

KUKA 00-179-955 Robot Encoder Cable 10m for KRC4 robot controllers

• Brand: KUKA
• Part Number: 00-179-955
• Alternative Number: 00179955
• Product Type: KUKA Robot Encoder Cable
• Cable Length: 10 m
• Application: KUKA external axis / linear unit
• Controller: KUKA KRC4
• Cable Function: Encoder / resolver signal transmission
• Installation: Suitable for cable carrier applications

Application

KUKA 00-179-955 is used as an encoder or resolver cable for an external axis of a KUKA linear unit. In a typical installation, the cable connects the external-axis servo motor to the RDC box, providing the signal connection required for the robot's external-axis system.

This cable is suitable for KUKA robot maintenance, external-axis repair, robot refurbishment and replacement applications.

Technical Specifications

• Length: 10 m
• Cable Type: Encoder / resolver cable
• Outer Diameter: Approx. 8.2 mm
• Minimum Dynamic Bending Radius: 7 × cable outer diameter
• Sheath Material: PUR
• Oil Resistant: Yes
• Halogen Free: Yes
• Flame Retardant: Yes
• Operating Temperature: Approx. -30°C to +90°C
• Rated Voltage: 350 V
• Application: KUKA external axis and linear units

Suitable Applications

KUKA 00-179-955 can be used for:

• KUKA external-axis systems
• KUKA linear units
• KUKA KRC4 robot systems
• External-axis servo motor connections
• RDC box signal connections
• Robot encoder cable replacement
• Industrial robot maintenance and repair
